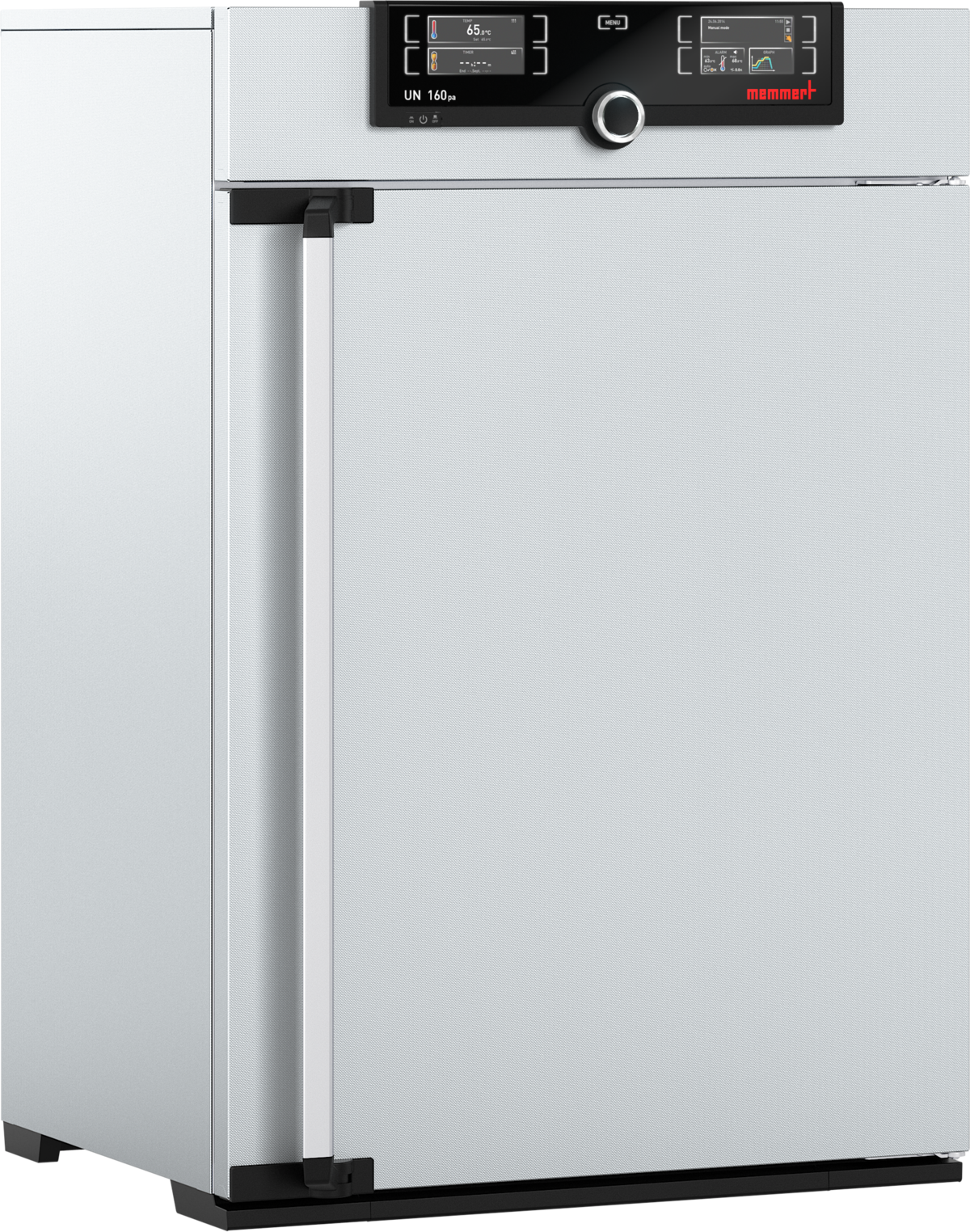

Parrafin oven UN160pa

Basic characteristic

Special ovens with gas-tight chamber ensuring excellent uniformity of temperature distribution, natural airflow in the chamber, five chamber sizes, TwinDisplay operator comfort. One or two stainless steel grids are included (depending on the chamber volume).

Warranty 36 months.

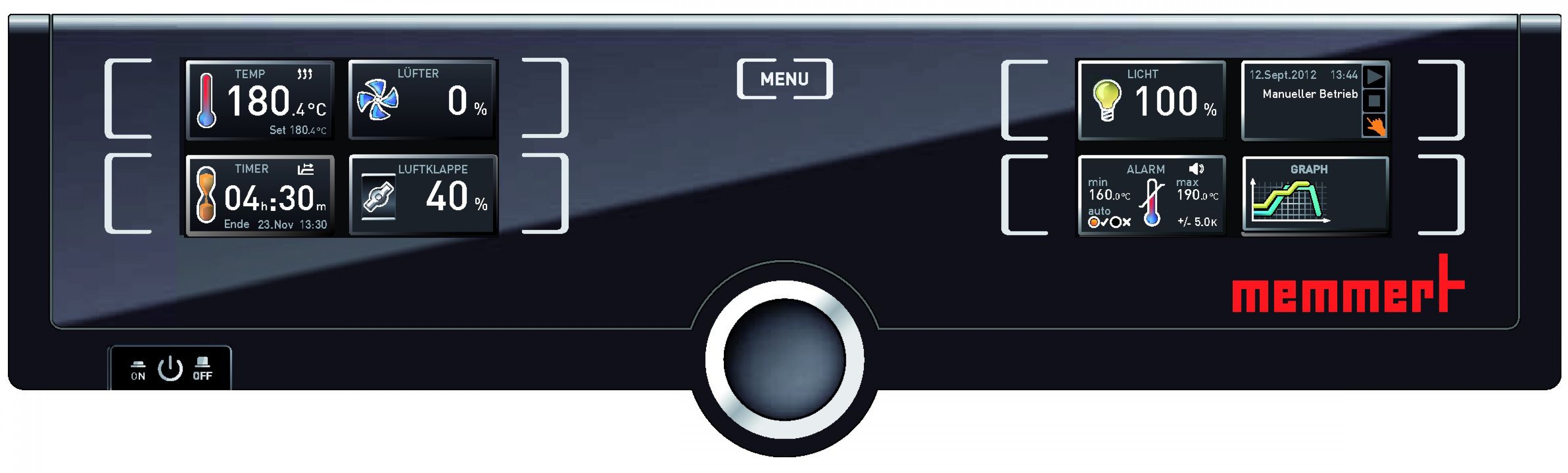

TwinDISPLAY

Temperature, fan speed, damper position, time, humidity, lighting, CO2, O2, pressure, ... according to particular type of device
Two Pt100 temperature sensors according to DIN class A
HeatBALANCE function to distribute heating power between upper and lower heating group between -50% and + 50% for specific applications
USB interface
Load program (max. 10 000 values - 1 week)
Ethernet interface
Multiple overheating protection - electronic and mechanical according to DIN 12 880, AutoSAFETY function

Temperature range: from 5 ° C above ambient temperature to 80 ° C
Inner chamber: stainless steel DIN 1.4301 (AISI 304)

Technical specifications:
Volume: 161 l
Sieves: possible / supplied 8/2
Internal width: 560 mm
Internal height: 720 mm
Inner depth: 400 mm
Outer width: 745 mm
External height: 1104 mm
External depth: 584 mm
Voltage: 230 V
Max power: 3.2 kW
Weight: 80 kg

Authorized sales and service: MERCI, s.r.o., link HERE

The product can be found HERE

Optional accessories:
Additional stainless steel grid
Additional stainless steel shelf
Drip bath
Additional non-perforated shelf (tray)
Entry port (23 mm, 40 mm)
