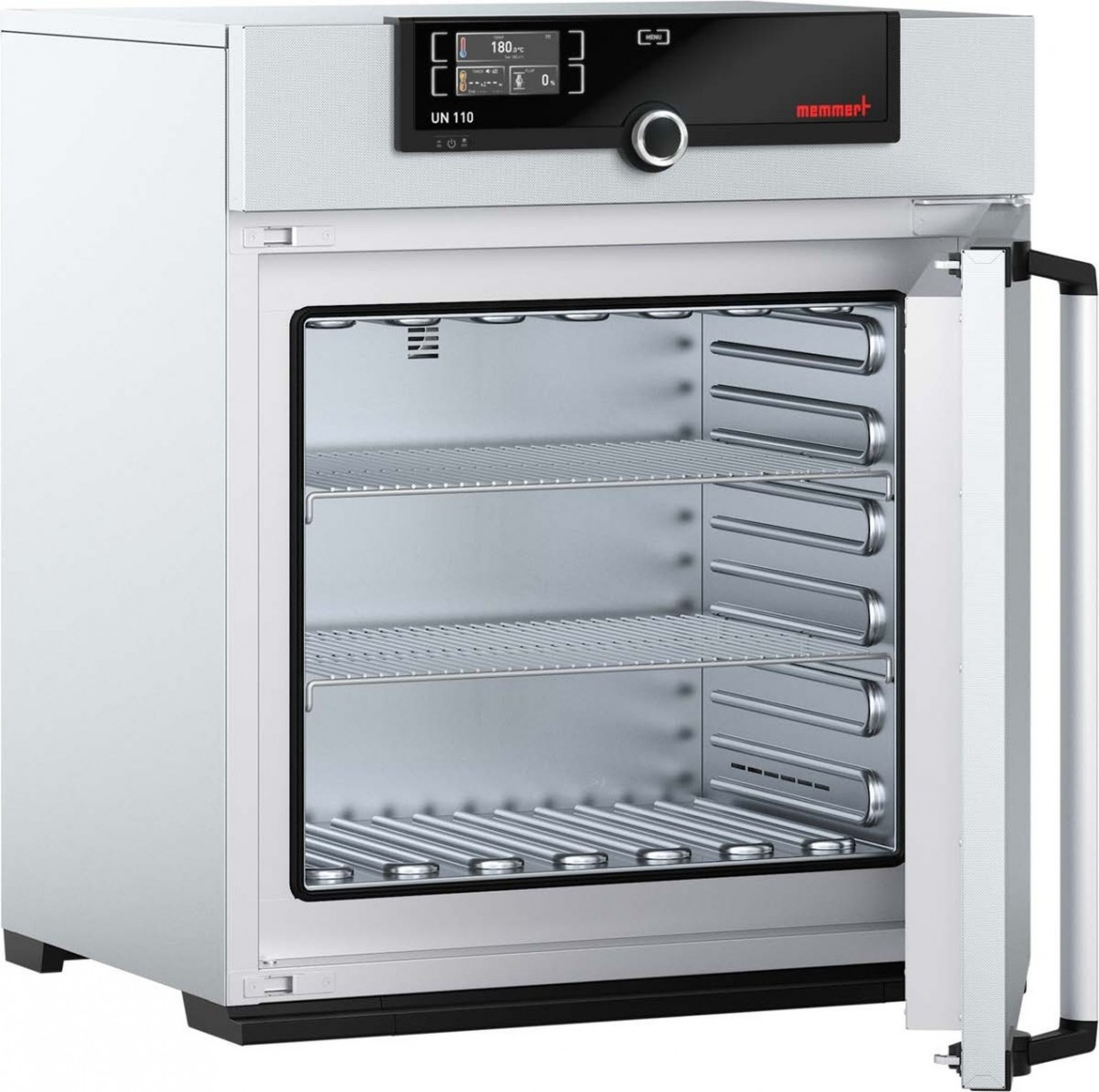

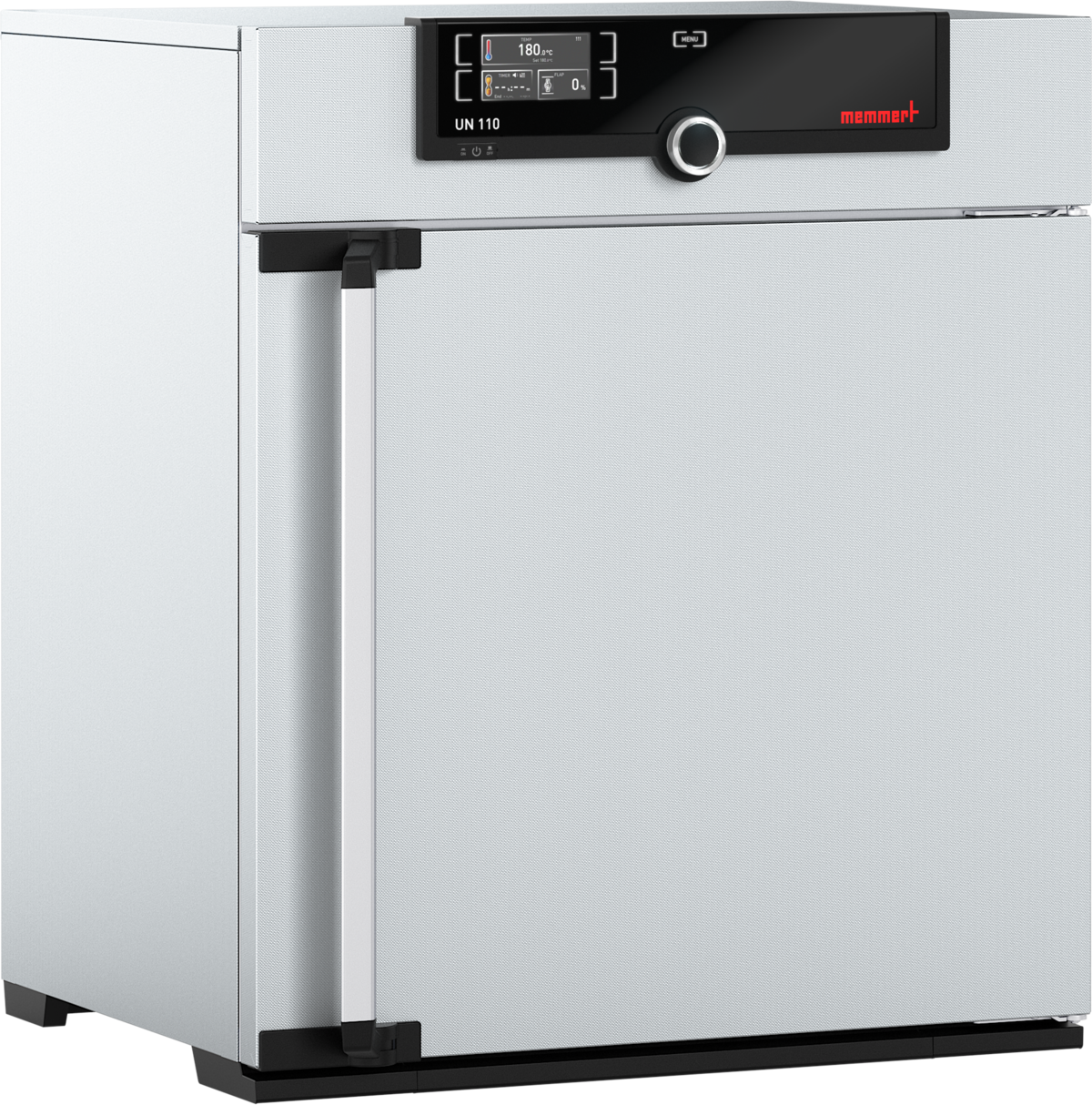

Oven UN110m (108 l)

Basic characteristic

All-stainless steel ovens of the UN series with natural air circulation are an excellent choice for drying powders. Nine chamber sizes, user comfort SingleDISPLAY or TwinDISPLAY (chambers marked "plus"). Overall, these devices are part of the Generation 2012 model series, which allows very easy PC programming via AtmoCONTROL software. oftware AtmoCONTROL allows reading, storing and managing data in various formats, online monitoring of up to 32 devices, remote management, sending alarm messages to specified email addresses. For TwinDISPLAY models the software is included (on USB stick), for SingleDISPLAY models it is possible to download a free 90-day version with the option to purchase the full version. One or two stainless steel sieves are included (depending on the chamber volume).

Warranty 36 months.

SingleDISPLAY

Temperature, fan speed, damper position, time, humidity, lighting, CO2, O2, pressure, ...
One Pt100 temperature sensor according to DIN class A
Ethernet interface
Double protection against overheating - electronic and mechanical according to DIN 12 880

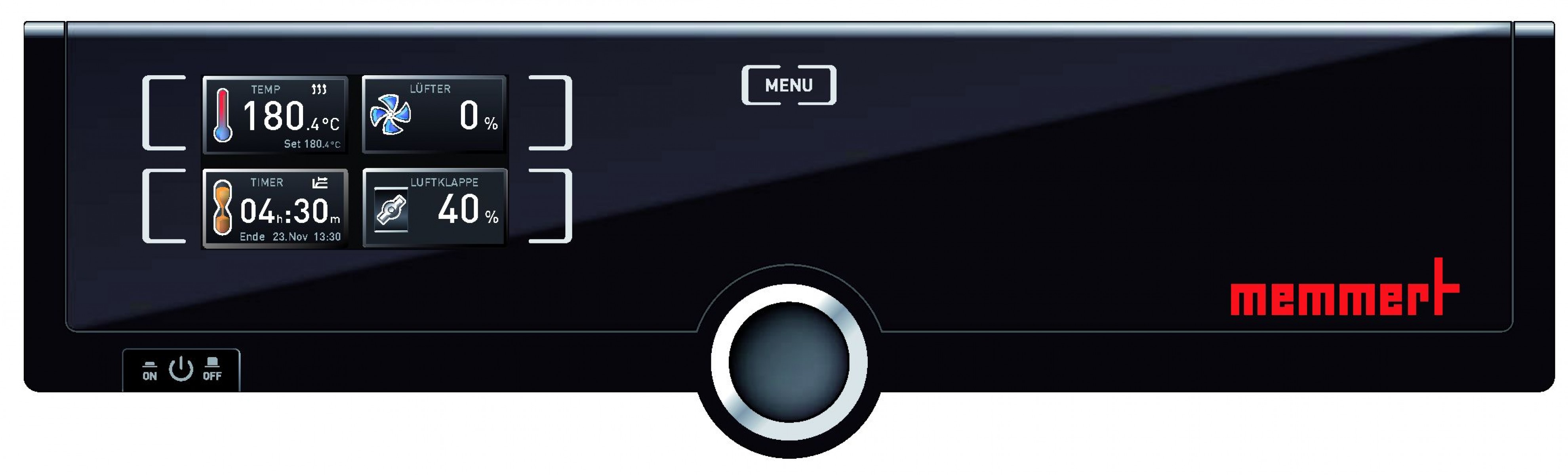

TwinDISPLAY

Temperature, fan speed, damper position, time, humidity, lighting, CO2, O2, pressure, ...
Two Pt100 temperature sensors according to DIN class A
HeatBALANCE function providing distribution of heating power between upper and lower heating group in the range of -50% to + 50% for specific applications
USB interface
Load program (max. 10,000 values - 1 week)
Ethernet interface
Multiple overheating protection - electronic and mechanical according to DIN 12 880, AutoSAFETY function

Temperature range: from 5 ° C above ambient temperature to 300 ° C
Inner chamber: stainless steel DIN 1.4301 (AISI 304)

Technical Specifications:
Volume: 108 l
Sieves: possible / supplied 5/2
Internal width: 560 mm
Internal height: 480 mm
Inner depth: 400 mm
Outer width: 745 mm
External height: 867 mm
External depth: 584 mm
Voltage: 230 V
Max power: 2.8 kW
Weight: 72 kg

Authorized sales and service: MERCI, s.r.o., link HERE

The product can be found HERE

Optional accessories:
Additional stainless steel screen
Additional stainless steel shelf
Drip bath
Additional non-perforated shelf (tray)
Grommet (14 mm, 23 mm, 38 mm, 57 mm, 100 mm)
